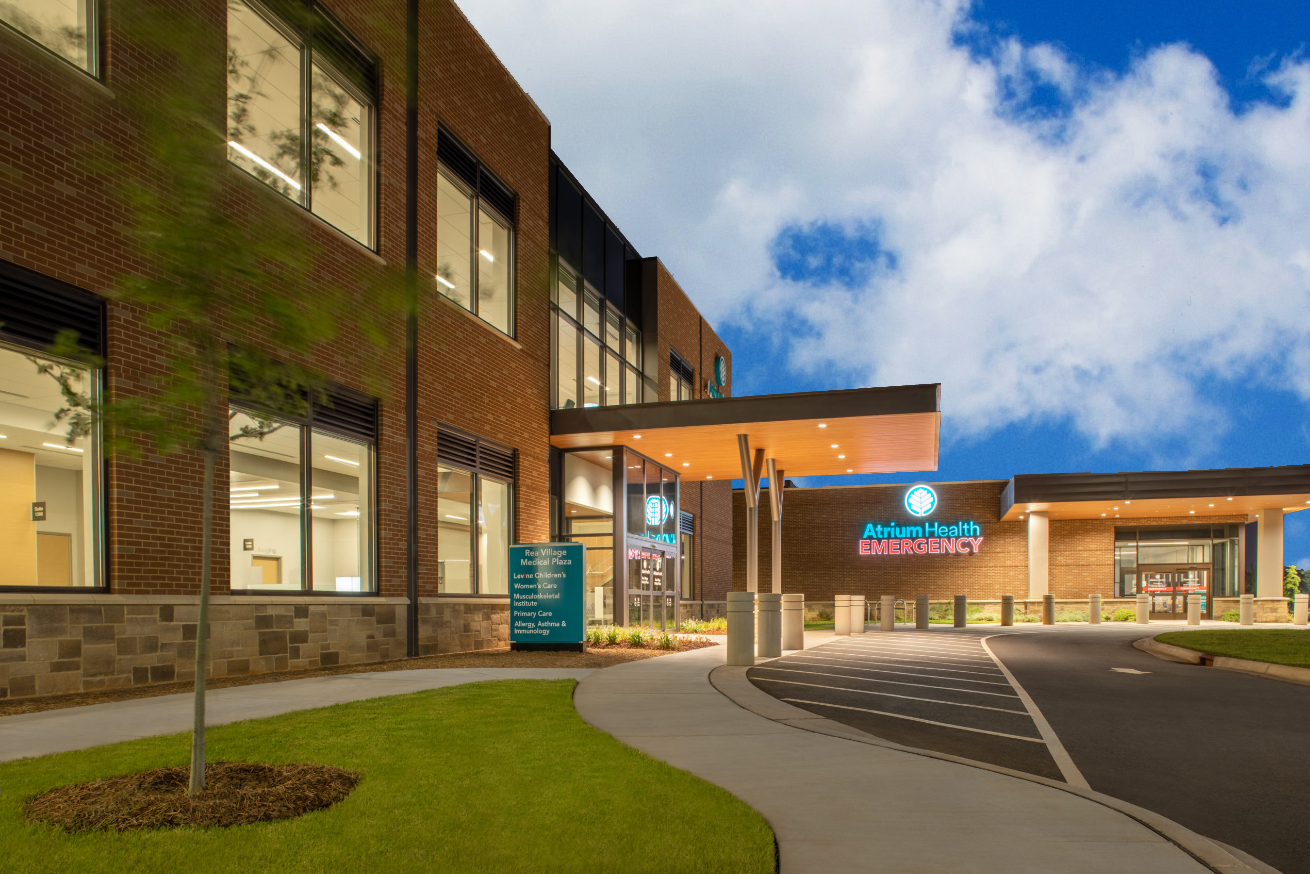

Digitrol provided the HVAC and Building Automation Systems for Atrium Health’s 32,000 Sq Ft Medical Office Building located in Rea Village on Providence Road in Charlotte NC. Built by The Beck Group in 2021, it is a two story building with medical office spaces, an ambulatory surgery component, diagnostic imaging, and an urgent care clinic. It also has additional shell space for future expansion. The HVAC system includes (2) 40 Ton Trane Intellipak Roof Top Units, (38) Variable Air Volume Terminal Boxes with Electric Reheat, and a Trane Building Automation System with Wireless Controls.

We were very excited to be a part of this successful project.

Project Specs

• 30,250 CFM Supply Air Total
• 80 Tons of DX Cooling
• Variable Air Volume Terminal Units with 277/1 Electric Reheat
• 3,000 CFM Exhaust Air Flow
• Open Plenum Return with Transfer Air and Fire Dampers

Date Completed:
October 2021

Location:
Rea Village, Providence Rd
Charlotte, NC

Application:
Medical Office Building

Equipment:
(2) 40 Ton Trane Intellipaks
(38) VAV Boxes
(2) Ductless Mini Splits
(1) Exhaust Fan

Driving Factors:
Energy Efficiency
Reliable Operation
